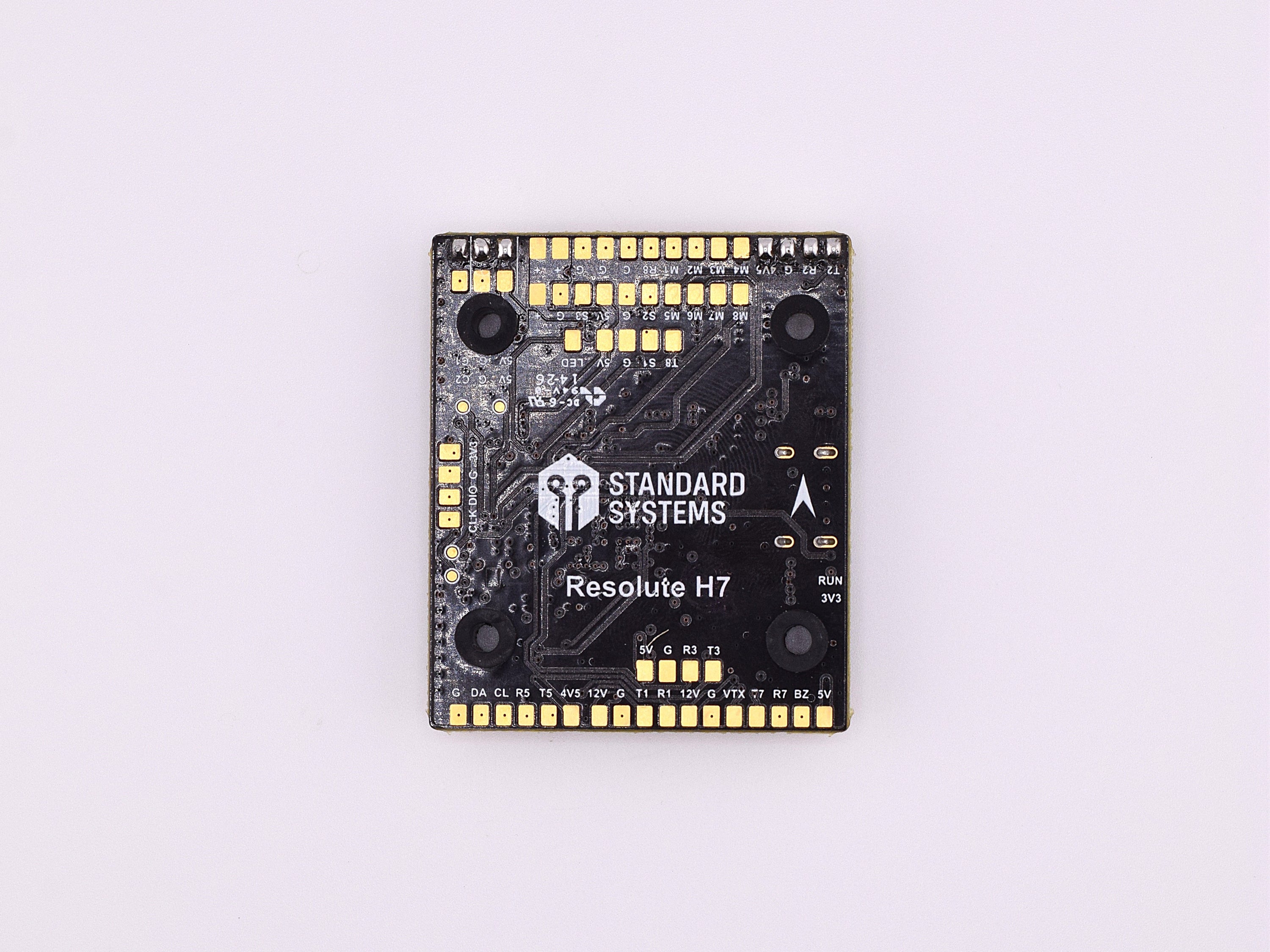

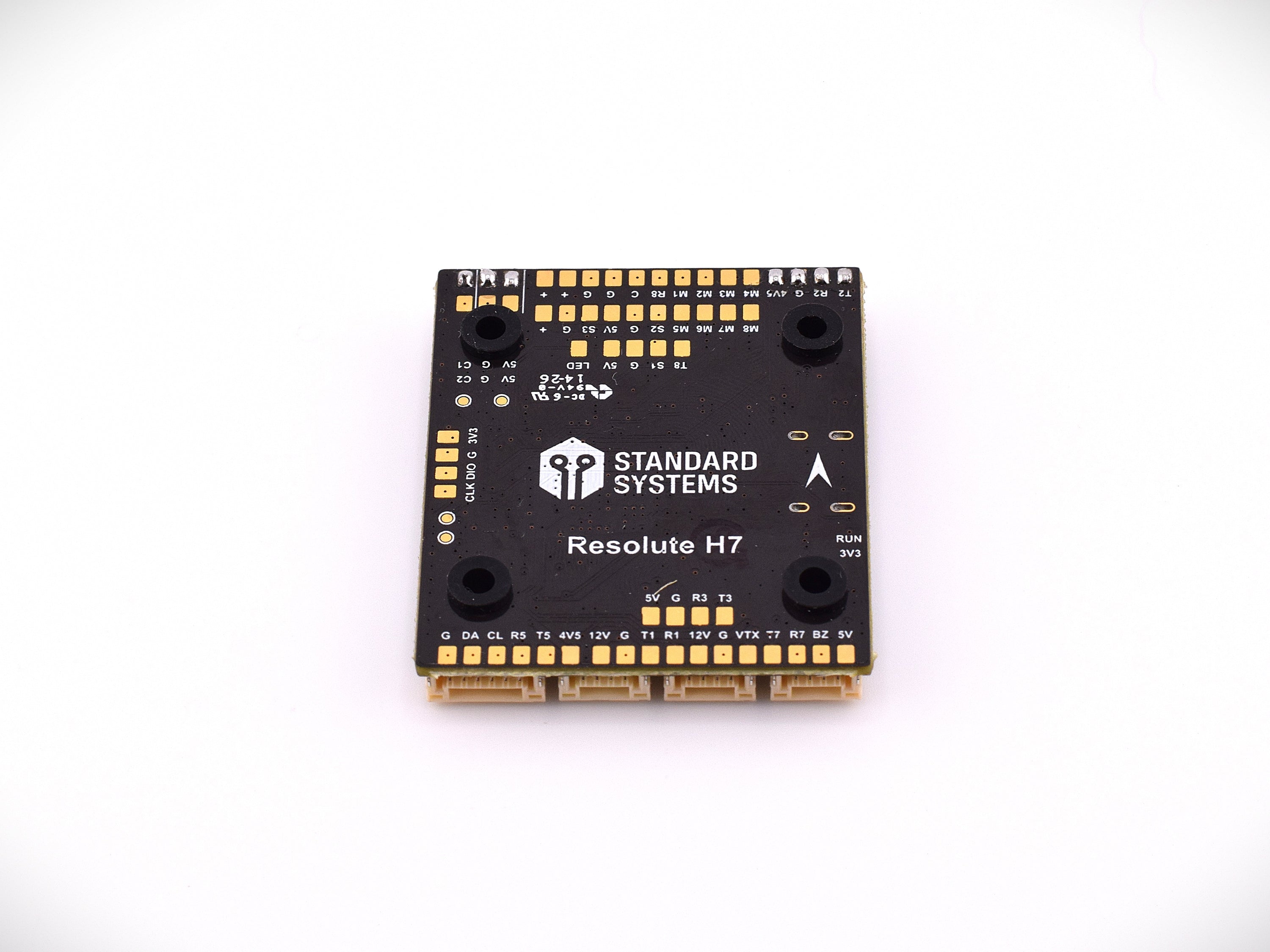

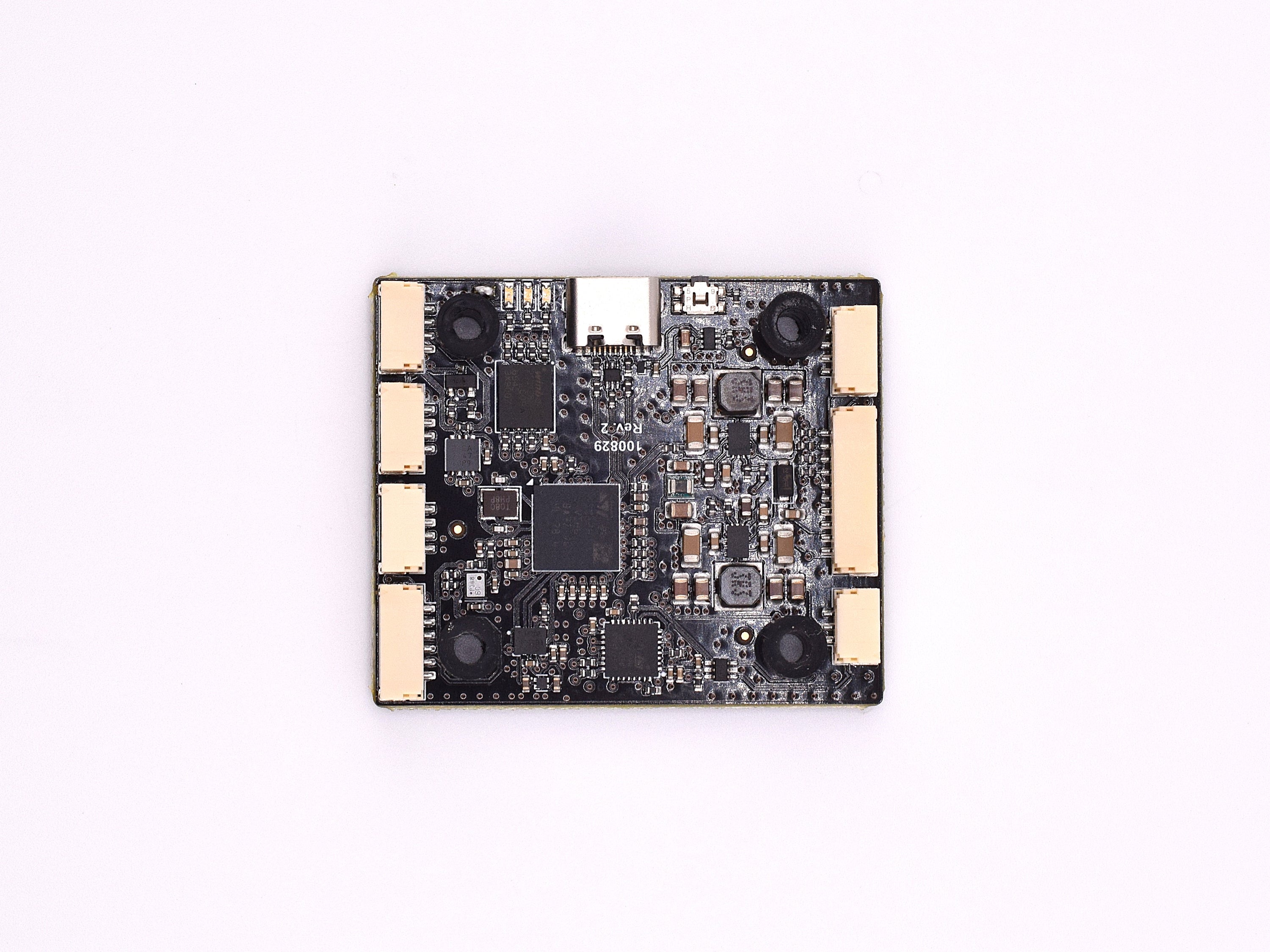

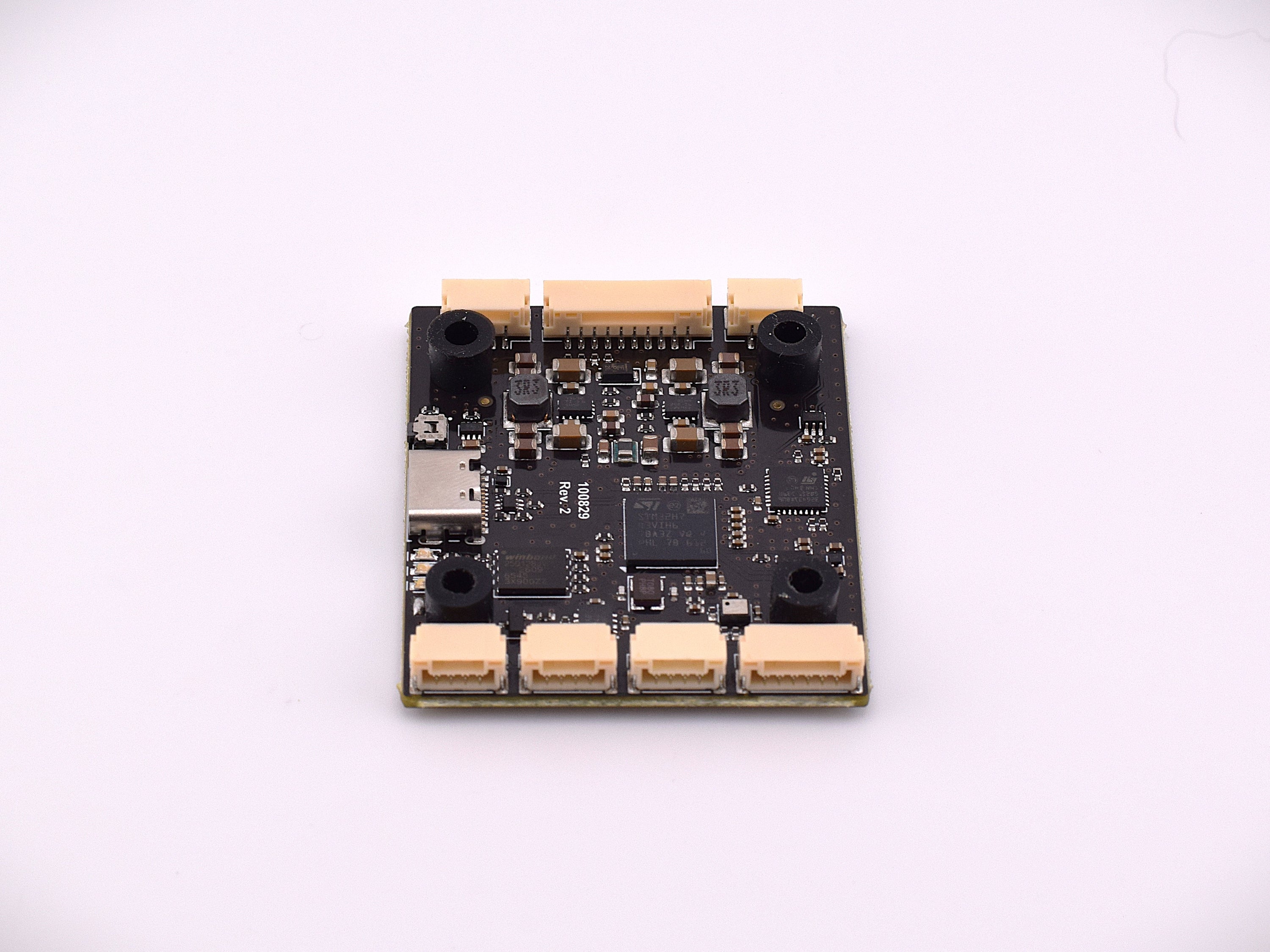

Resolute H7 Flight Controller

$130.00
$130.00
    Resolute H7 Flight Controller
    Resolute H7 Flight Controller
    Resolute H7 Flight Controller
    Resolute H7 Flight Controller

    Built for Systems That Matter

    The Resolute H7 Flight Controller was designed from the ground up for operators and integrators who need dependable performance in demanding environments. Powered by the STM32H743 processor and engineered with clean power delivery, extensive I/O capability, and robust thermal management, Resolute H7 provides a stable foundation for mission-critical unmanned systems.

    Unlike consumer-focused flight controllers optimized for racing performance, Resolute H7 prioritizes reliability, integration flexibility, and long-term support. Dedicated low-noise power regulation for sensors, isolated power architecture, and extensive connectivity options enable seamless integration with radios, payloads, companion computers, sensors, and mission-specific hardware.

    Key Features

    • STM32H743 processor
    • Compatible with Betaflight, ArduPilot, and PX4
    • ICM-42688P IMU
    • DPS368 barometer
    • Six full UARTs for advanced system integration
    • Eight motor outputs plus dedicated servo channels
    • Dual analog camera inputs with onboard switching
    • Integrated analog OSD support
    • Independent 12V and 5V power rails
    • Dedicated low-noise IMU power supply
    • TVS-protected power architecture
    • JST-GH and solder-pad connectivity
    • Designed and manufactured in the USA
    • NDAA Compliant
    • 50 x 43 mm
    • 14.35 g
    • 30.5 x 30.5 mm mounting
